Punch
Une simplicité classique : la flexibilité combinée à un look et une sensation de haute qualité.
- Sa conception est classique et rectiligne, avec une esthétique agréable et intemporelle grâce à sa grille aluminium. Matériaux de qualité qui soulignent la valeur du produit.
- Distribution lumineuse : distribution lumineuse directe, directe/indirecte (60/40 % ou 50/50 %) et asymétrique, version en aluminium à double parabole et version optique LRO, et UGR<16 font de PUNCH un choix idéal pour une diversité d’applications.
- Installation : les versions plafonnier ou suspension, ainsi que la possibilité d'un montage en ligne continue ou d’un montage mural offrent une très grande flexibilité.
- PUNCH est d'un bon rapport qualité-prix pour une durée de vie de 50000 H @L80 à 25°C
- Des versions pour tous les besoins : IRC80 ou IRC90, mode de secours, interruption à cordon, encarts de différentes tailles pour une rangée continue ou choix entre LRO et optique à grille, pour une multitude de possibilités pour différentes situations.
Matériaux et finition
Corps et embouts : tôle d'acier, peinture poudrée thermolaquée blanche

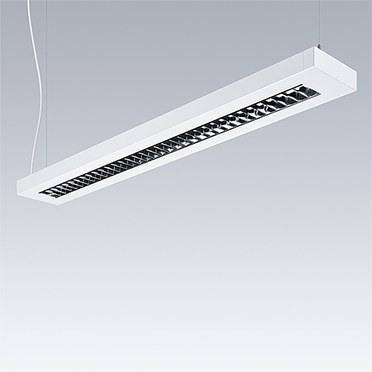

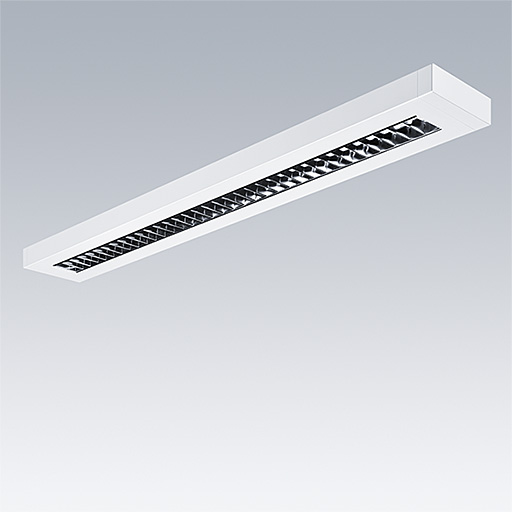

Grilles : aluminium ultra réfléchissant, double parabole
Diffuseurs : polycarbonate opale
LRO : polyméthylméthacrylate microprismatique (PMMA)
Installation et montage

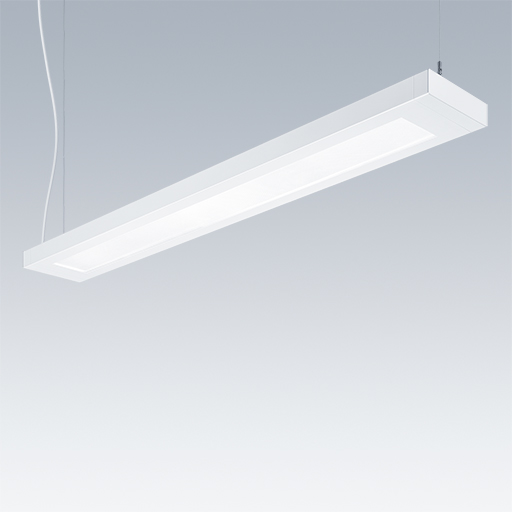

Version suspendue directe/indirecte : éléments de suspension coulissants pour un montage aisé, suspensions à commander séparément (22171581), cordon d'alimentation préinstallé
Version suspendue directe uniquement : permet de combiner le plafonnier LRO souhaité monté en surface ou la variante LV avec les accessoires de suspension optionnels (22171581 & 22171349), à commander séparément

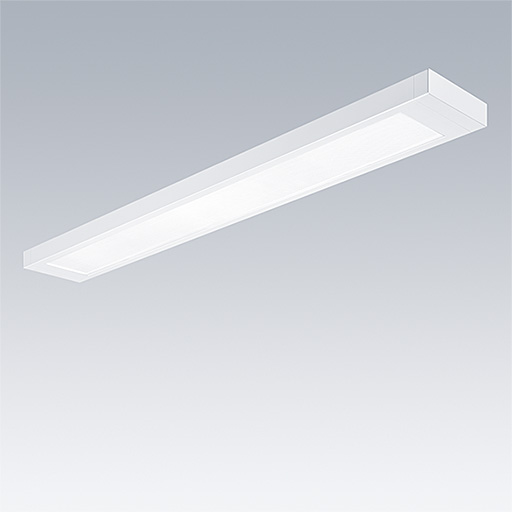

Version apparente : convient pour un montage direct apparent
Rangée continue et remplissage : accessoires en option permettant de relier entre eux tous les luminaires suspendus individuels
Version murale : élément de fixation au mur en option, compatible avec toutes les versions
Prescription
To specify state:
A classic designed LED luminaire with double parabolic aluminium louvres or PMMA LRO optics. Direct, direct/indirect and asymmetric light distribution. Surface-mounted, suspended, continuous row (with optional infills) or wall mounting possibility. Direct/indirect split of 60/40%, 3000/4000K colour temperature, CRI >80 or CRI >90, MacAdam 3, IK04, a lifetime of 70 000h @ L80 Ta 25°C, up to UGR <19 and efficacy of up to 133 lm/W. HFIX controllable, pull cord switch, E3 or E3D options available. Standard colour powder coated sheet steel in white (close to RAL9016) - other colours (e.g. silver) on request.
As Thorn Punch
- New Product
▼ Punch, plafonnier
| Description | Type | Poids (kg) | Code SAP | ||||||
|---|---|---|---|---|---|---|---|---|---|
| PUNCH 3 LRO MSC 3200-830 L12 HF | LED | 3.50 | 96636043 | ||||||
| PUNCH 3 LRO MSC 3200-840 L12 HF | LED | 3.50 | 96636044 | ||||||
| PUNCH 3 LRO MSC 3200-930 L12 HF | LED | 3.50 | 96636033 | ||||||
| PUNCH 3 LRO MSC 3200-940 L12 HF | LED | 3.50 | 96636037 | ||||||
| PUNCH 3 LRO MSC 3800-830 L15 HF | LED | 3.80 | 96636045 | ||||||
| PUNCH 3 LRO MSC 3800-840 L15 HF | LED | 3.80 | 96636046 | ||||||
| PUNCH 3 LRO MSC 3800-930 L15 HF | LED | 3.80 | 96636034 | ||||||
| PUNCH 3 LRO MSC 3800-940 L15 HF | LED | 3.80 | 96636038 | ||||||
| PUNCH 3 LV MSC 4000-830 L12 HF | LED | 3.50 | 96636019 | ||||||
| PUNCH 3 LV MSC 4000-840 L12 HF | LED | 3.50 | 96636020 | ||||||
| PUNCH 3 LV MSC 4000-930 L12 HF | LED | 3.50 | 96636013 | ||||||
| PUNCH 3 LV MSC 4000-940 L12 HF | LED | 3.50 | 96636009 | ||||||
| PUNCH 3 LV MSC 6000-830 L15 HF | LED | 3.80 | 96636021 | ||||||
| PUNCH 3 LV MSC 6000-840 L15 HF | LED | 3.80 | 96636022 | ||||||
| PUNCH 3 LV MSC 6000-930 L15 HF | LED | 3.80 | 96636014 | ||||||
| PUNCH 3 LV MSC 6000-940 L15 HF | LED | 3.80 | 96636010 |
▼ Punch, plafonnier, gradable
| Description | Type | Poids (kg) | Code SAP | ||||||
|---|---|---|---|---|---|---|---|---|---|
| <PUNCH 3 LRO MSC 3200-830 L12 HFIX | LED | 6.00 | 96635385 | ||||||
| <PUNCH 3 LRO MSC 3800-830 L15 HFIX | LED | 6.50 | 96635387 | ||||||
| PUNCH 3 LRO MSC 3200-840 L12 HFIX | LED | 6.00 | 96635386 | ||||||
| PUNCH 3 LRO MSC 3200-930 L12 HFIX | LED | 3.50 | 96636049 | ||||||
| PUNCH 3 LRO MSC 3200-940 L12 HFIX | LED | 6.00 | 96635391 | ||||||
| PUNCH 3 LRO MSC 3800-840 L15 HFIX | LED | 6.50 | 96635388 | ||||||
| PUNCH 3 LRO MSC 3800-930 L15 HFIX | LED | 3.80 | 96636050 | ||||||
| PUNCH 3 LRO MSC 3800-940 L15 HFIX | LED | 6.50 | 96635392 | ||||||
| PUNCH 3 LV MSC 4000-830 L12 HFIX | LED | 3.50 | 96635735 | ||||||
| PUNCH 3 LV MSC 4000-840 L12 HFIX | LED | 3.50 | 96635736 | ||||||
| PUNCH 3 LV MSC 4000-930 L12 HFIX | LED | 3.50 | 96636025 | ||||||
| PUNCH 3 LV MSC 4000-940 L12 HFIX | LED | 3.80 | 96635717 | ||||||
| PUNCH 3 LV MSC 6000-830 L15 HFIX | LED | 3.80 | 96635737 | ||||||
| PUNCH 3 LV MSC 6000-840 L15 HFIX | LED | 3.80 | 96635738 | ||||||
| PUNCH 3 LV MSC 6000-930 L15 HFIX | LED | 3.80 | 96636026 | ||||||
| PUNCH 3 LV MSC 6000-940 L15 HFIX | LED | 3.80 | 96635718 |
▼ Punch, plafond, secours gradable
| Description | Type | Poids (kg) | Code SAP | ||||||
|---|---|---|---|---|---|---|---|---|---|
| <PUNCH 3 LRO MSC 3200-830 L12 HFIX E3 | LED | 6.20 | 96635401 | ||||||
| <PUNCH 3 LRO MSC 3200-840 L12 HFIX E3 | LED | 6.20 | 96635402 | ||||||
| PUNCH 3 LRO MSC 3200-930 L12 HFIX E3 | LED | 3.50 | 96636053 | ||||||
| PUNCH 3 LRO MSC 3200-940 L12 HFIX E3 | LED | 3.50 | 96635739 | ||||||
| PUNCH 3 LRO MSC 3800-830 L15 HFIX E3 | LED | 6.80 | 96635403 | ||||||
| PUNCH 3 LRO MSC 3800-840 L15 HFIX E3 | LED | 6.80 | 96635404 | ||||||
| PUNCH 3 LRO MSC 3800-930 L15 HFIX E3 | LED | 3.80 | 96636052 | ||||||
| PUNCH 3 LRO MSC 3800-940 L15 HFIX E3 | LED | 6.80 | 96635408 | ||||||
| PUNCH 3 LV MSC 4000-830 L12 HFIX E3 | LED | 3.50 | 96635727 | ||||||
| PUNCH 3 LV MSC 4000-840 L12 HFIX E3 | LED | 3.50 | 96635728 | ||||||
| PUNCH 3 LV MSC 4000-930 L12 HFIX E3 | LED | 3.50 | 96636029 | ||||||
| PUNCH 3 LV MSC 4000-940 L12 HFIX E3 | LED | 3.80 | 96635721 | ||||||
| PUNCH 3 LV MSC 6000-830 L15 HFIX E3 | LED | 3.80 | 96635729 | ||||||
| PUNCH 3 LV MSC 6000-840 L15 HFIX E3 | LED | 3.80 | 96635730 | ||||||
| PUNCH 3 LV MSC 6000-930 L15 HFIX E3 | LED | 3.80 | 96636030 | ||||||
| PUNCH 3 LV MSC 6000-940 L15 HFIX E3 | LED | 3.80 | 96635722 |
▼ Punch, suspension
| Description | Type | Poids (kg) | Code SAP | ||||||
|---|---|---|---|---|---|---|---|---|---|
| <PUNCH 3 ASYM MSP 2200-830 L12 HF | LED | 3.50 | 96630502 | ||||||
| <PUNCH 3 ASYM MSP 2200-840 L12 HF | LED | 3.50 | 96630503 | ||||||
| PUNCH 3 ASYM MSP 2200-930 L12 HF | LED | 3.50 | 96636057 | ||||||
| PUNCH 3 ASYM MSP 2200-940 L12 HF | LED | 3.50 | 96636056 | ||||||
| PUNCH 3 LRO MSP 5500-830 L12 HF | LED | 3.50 | 96636039 | ||||||
| PUNCH 3 LRO MSP 5500-840 L12 HF | LED | 3.50 | 96636040 | ||||||
| PUNCH 3 LRO MSP 5500-930 L12 HF | LED | 3.50 | 96636031 | ||||||
| PUNCH 3 LRO MSP 5500-940 L12 HF | LED | 3.50 | 96636035 | ||||||
| PUNCH 3 LRO MSP 6600-830 L15 HF | LED | 3.80 | 96636041 | ||||||
| PUNCH 3 LRO MSP 6600-840 L15 HF | LED | 3.80 | 96636042 | ||||||
| PUNCH 3 LRO MSP 6600-930 L15 HF | LED | 3.80 | 96636032 | ||||||
| PUNCH 3 LRO MSP 6600-940 L15 HF | LED | 3.80 | 96636036 | ||||||
| PUNCH 3 LV MSP 5500-830 L12 HF | LED | 3.50 | 96636015 | ||||||
| PUNCH 3 LV MSP 5500-840 L12 HF | LED | 3.50 | 96636016 | ||||||
| PUNCH 3 LV MSP 5500-930 L12 HF | LED | 3.50 | 96636011 | ||||||
| PUNCH 3 LV MSP 5500-940 L12 HF | LED | 3.50 | 96636007 | ||||||
| PUNCH 3 LV MSP 6600-830 L15 HF | LED | 3.80 | 96636017 | ||||||
| PUNCH 3 LV MSP 6600-840 L15 HF | LED | 3.80 | 96636018 | ||||||
| PUNCH 3 LV MSP 6600-930 L15 HF | LED | 3.80 | 96636012 | ||||||
| PUNCH 3 LV MSP 6600-940 L15 HF | LED | 3.80 | 96636008 |
▼ Punch, suspension, gradable
▼ Punch, suspension, secours gradable
| Description | Type | Poids (kg) | Code SAP | ||||||
|---|---|---|---|---|---|---|---|---|---|
| <PUNCH 3 LRO MSP 5500-830 L12 HFIX E3 | LED | 6.20 | 96635397 | ||||||
| <PUNCH 3 LRO MSP 6600-830 L15 HFIX E3 | LED | 6.80 | 96635399 | ||||||
| <PUNCH 3 LRO MSP 6600-940 L15 HFIX E3 | LED | 6.80 | 96635406 | ||||||
| PUNCH 3 LRO MSP 5500-840 L12 HFIX E3 | LED | 6.20 | 96635398 | ||||||
| PUNCH 3 LRO MSP 5500-840 L12 HFIX E3D | LED | 6.20 | 96635405 | ||||||
| PUNCH 3 LRO MSP 5500-930 L12 HFIX E3 | LED | 3.50 | 96636054 | ||||||
| PUNCH 3 LRO MSP 5500-940 L12 HFIX E3 | LED | 3.80 | 96635740 | ||||||
| PUNCH 3 LRO MSP 6600-840 L15 HFIX E3 | LED | 6.80 | 96635400 | ||||||
| PUNCH 3 LRO MSP 6600-840 L15 HFIX E3D | LED | 6.20 | 96635407 | ||||||
| PUNCH 3 LRO MSP 6600-930 L15 HFIX E3 | LED | 3.80 | 96636051 | ||||||
| PUNCH 3 LV MSP 5500-830 L12 HFIX E3 | LED | 3.50 | 96635723 | ||||||
| PUNCH 3 LV MSP 5500-840 L12 HFIX E3 | LED | 3.80 | 96635724 | ||||||
| PUNCH 3 LV MSP 5500-930 L12 HFIX E3 | LED | 3.50 | 96636027 | ||||||
| PUNCH 3 LV MSP 5500-940 L12 HFIX E3 | LED | 3.50 | 96635719 | ||||||
| PUNCH 3 LV MSP 6600-830 L15 HFIX E3 | LED | 3.50 | 96635725 | ||||||
| PUNCH 3 LV MSP 6600-840 L15 HFIX E3 | LED | 3.80 | 96635726 | ||||||
| PUNCH 3 LV MSP 6600-930 L15 HFIX E3 | LED | 3.80 | 96636028 | ||||||
| PUNCH 3 LV MSP 6600-940 L15 HFIX E3 | LED | 3.50 | 96635720 |
▼ Punch, accessoires
| Description | Poids (kg) | Code SAP | |||||||
|---|---|---|---|---|---|---|---|---|---|
| <PUNCH 3 LV INFILL L15 | 2.85 | 96635745 | |||||||
| CEILING ROSE ROUND ASI/ASQ3 WH | 0.20 | 22171581 | |||||||
| PUNCH 3 ASYM WALL BRACKET WH | 0.75 | 96667068 | |||||||
| PUNCH 3 EMERGENCY BATTERY SPARE | 0.22 | 96636058 | |||||||
| PUNCH 3 LRO C MOUNT SET | 1.20 | 96635433 | |||||||
| PUNCH 3 LRO INFILL L15 | 1.50 | 96635435 | |||||||
| PUNCH 3 LRO INFILL L9 | 1.20 | 96635434 | |||||||
| PUNCH 3 LV C MOUNT SET | 0.50 | 96635743 | |||||||
| PUNCH 3 LV INFILL L9 | 1.85 | 96635744 |
